Unoriginal#

unoriginal

签到题，略



BF#

Simple equations... but in BF?!!!

bf.txt

BF to C Transpiler (kvbc.github.io)

有规律的，简单的加加减减，转换成 C 之后，正则匹配：

import re

lines = open("bf.c", encoding="utf-8").read();

mul_a = re.findall(r'\n\t\(\*p\)\+=(\d+);', lines);
mul_b = re.findall(r'\n\t\t\(\*p\)\+=(\d+);', lines);
checkers = re.findall(r'\n\t\(\*p\)\-=(\d+);', lines);

result = "".join([chr(checker - a * b) for a, b, checker in zip(map(int, mul_a), map(int, mul_b), map(int, checkers))])



Rust#

output.txt [missing note] rust

Rust! Enjoy 😃 Note: The message that produces the provided encryption is the flag.

插件 IDA Rust Demangler 优化一下符号

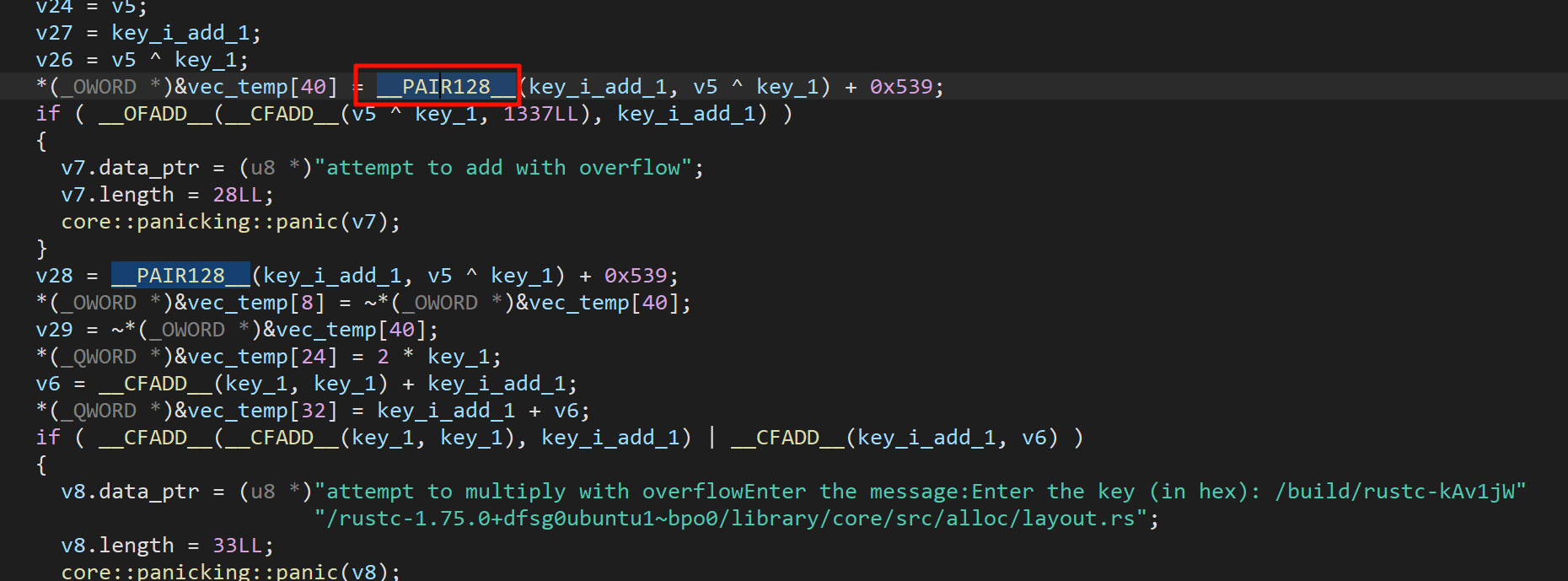

Article Image

这种宏定义可以在 IDA Pro\plugins\hexrays_sdk\include\defs.h 找到

#define __PAIR128__(high, low)  (((uint128)(high) << 64) | (uint64)(low))

简单的异或加密，解密脚本如下（其中 key 是通过 flag 开头 ictf 异或出来的）

#include<stdio.h>
#include<stdint.h>

__int128_t encs[] = {-42148619422891531582255418903, -42148619422891531582255418927, -42148619422891531582255418851, -42148619422891531582255418907, -42148619422891531582255418831, -42148619422891531582255418859, -42148619422891531582255418855, -42148619422891531582255419111, -42148619422891531582255419103, -42148619422891531582255418687, -42148619422891531582255418859, -42148619422891531582255419119, -42148619422891531582255418843, -42148619422891531582255418687, -42148619422891531582255419103, -42148619422891531582255418907, -42148619422891531582255419107, -42148619422891531582255418915, -42148619422891531582255419119, -42148619422891531582255418935, -42148619422891531582255418823};

int main()
{
    for (int i = 0; i < 21; i++) {
        __int128_t enc = encs[i];
        int64_t key_part1 = 5131632107173988729;

        __int128_t dec = (~enc) - 0x539;
        dec = dec & 0xffffffff;
        dec = dec ^ key_part1;
        dec = dec >> 2;
        printf("%c", (char)dec);
    }
}





Oh, a Camel! #

While exploring twisted corridors of an ancient pyramid, you find a weird scroll with a camel drawn on it. You pick it up, but don't have too much time to inspect it…

在探索古代金字塔扭曲的走廊时，您会发现一个奇怪的卷轴，上面画着一只骆驼。你捡起它，但没有太多时间检查它......

main

使用的是 Ocaml 语言

Stackoverflow → 找到 ocamldumpobj → 在包 ocaml-nox —— 没啥用

Article Image

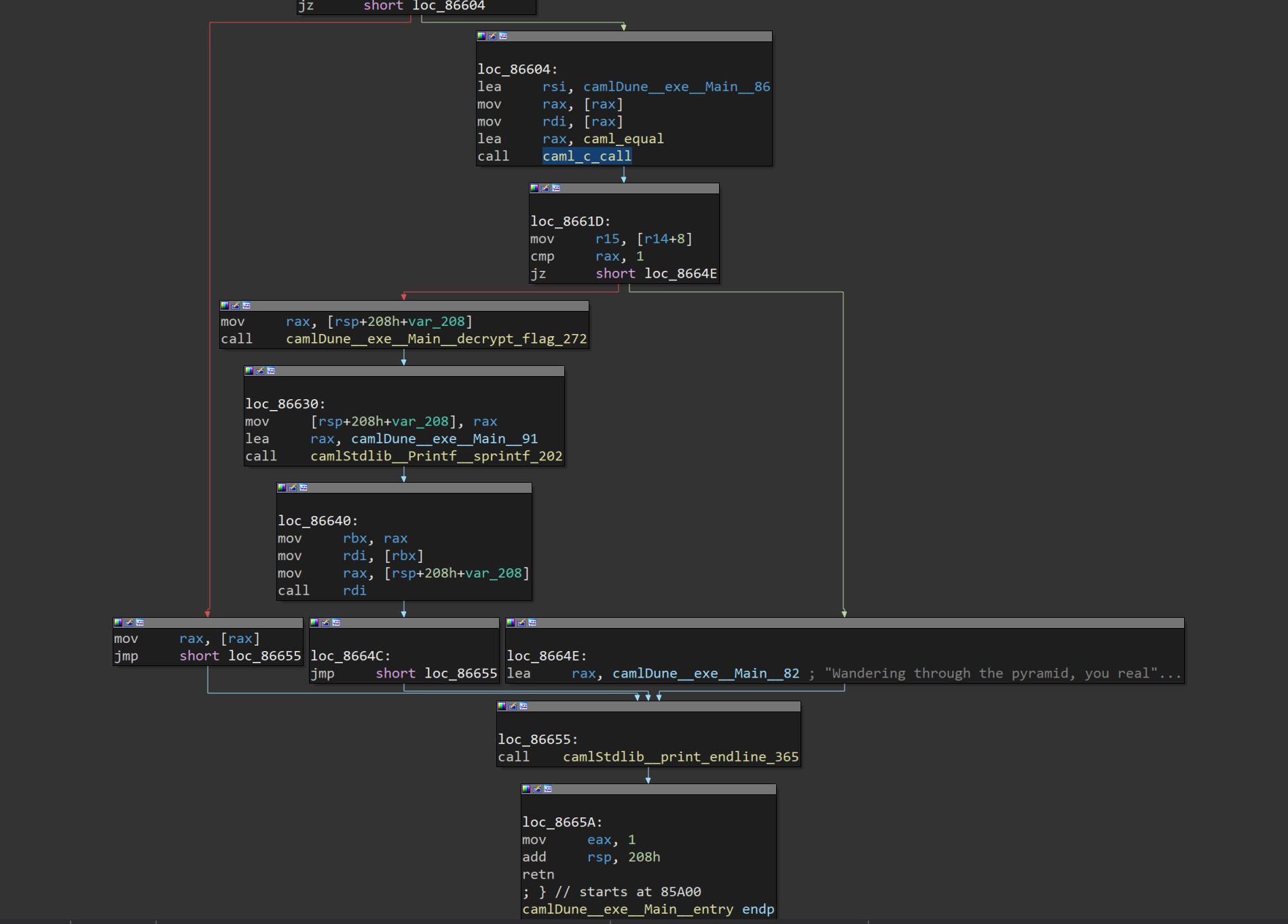

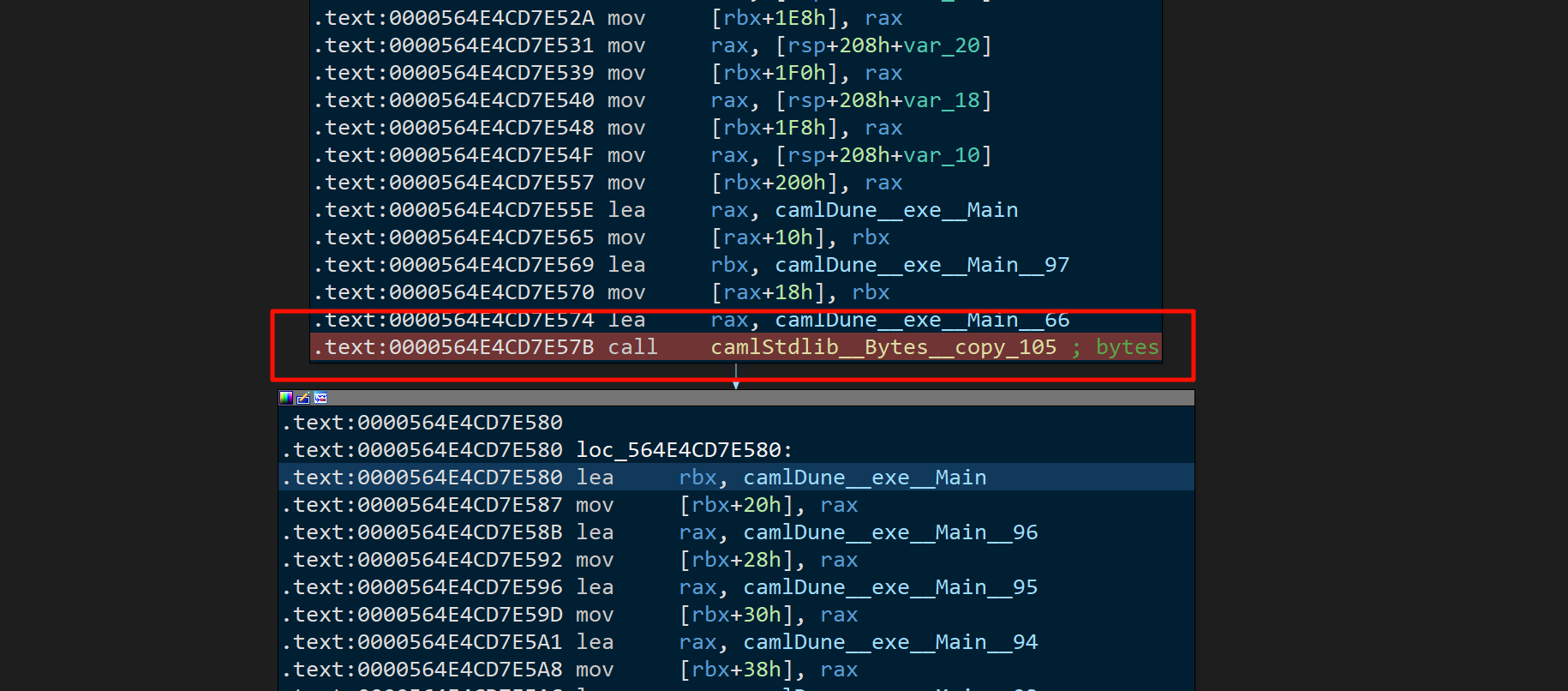

跟踪字符串，找到这

Article Image

这里的 rax 是一个 56 位的 bytes





Printf#

printf libc.so.6

%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%64949c%*c%c%c%hn%c%c%c%c%c%c%c%545c%hn%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%c%hhn%*c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%*74$c%8c%75$hhn

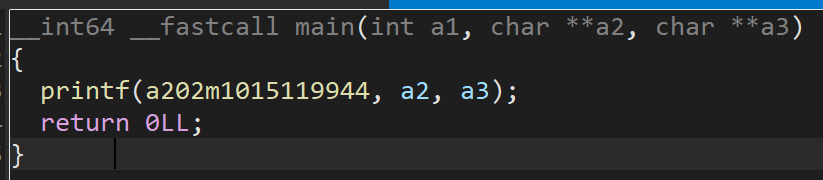

Article Image

在 printf 里面打印了一个巨大的字符串：data.txt ，直接运行，就会出现一大片空白

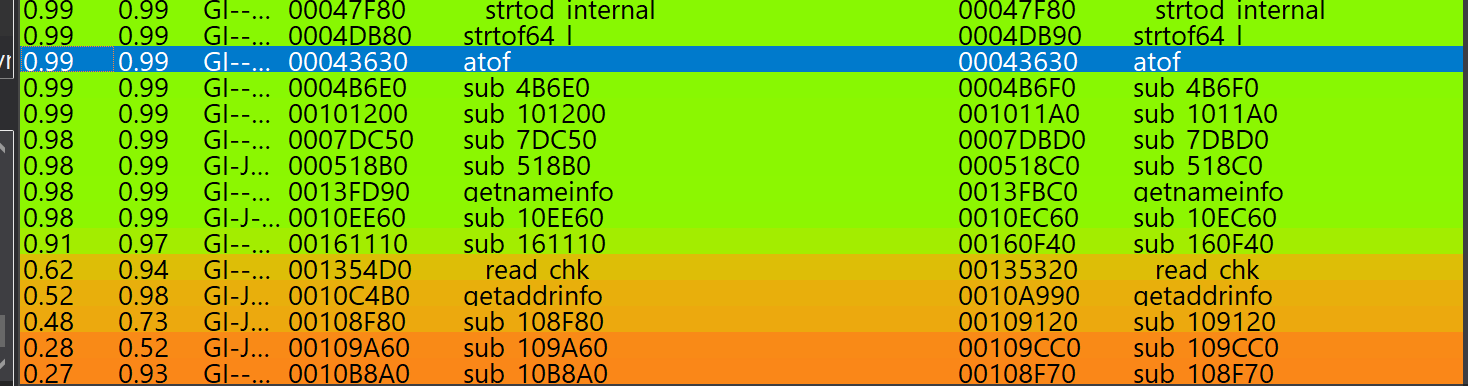

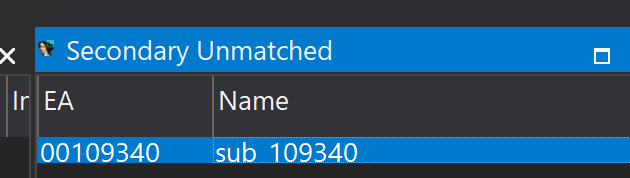

用 bindiff 看看

Article Image
Article Image



❯ ldd printf
        linux-vdso.so.1 (0x00007fff0cb03000)
        libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007fdf70e41000)
        /lib64/ld-linux-x86-64.so.2 (0x00007fdf71095000)

发现并没有链接到

sudo apt install patchelf
patchelf --set-rpath ./ printf
❯ ldd printf
        linux-vdso.so.1 (0x00007ffe7b5e9000)
        libc.so.6 => ./libc.so.6 (0x00007fe7b8cb7000)
        /lib64/ld-linux-x86-64.so.2 (0x00007fe7b8f00000)
❯ ./printf
-------------------------------------
     WELCOME TO THE PRINTF VAULT
-------------------------------------
Enter the flag:

ok

Article Image

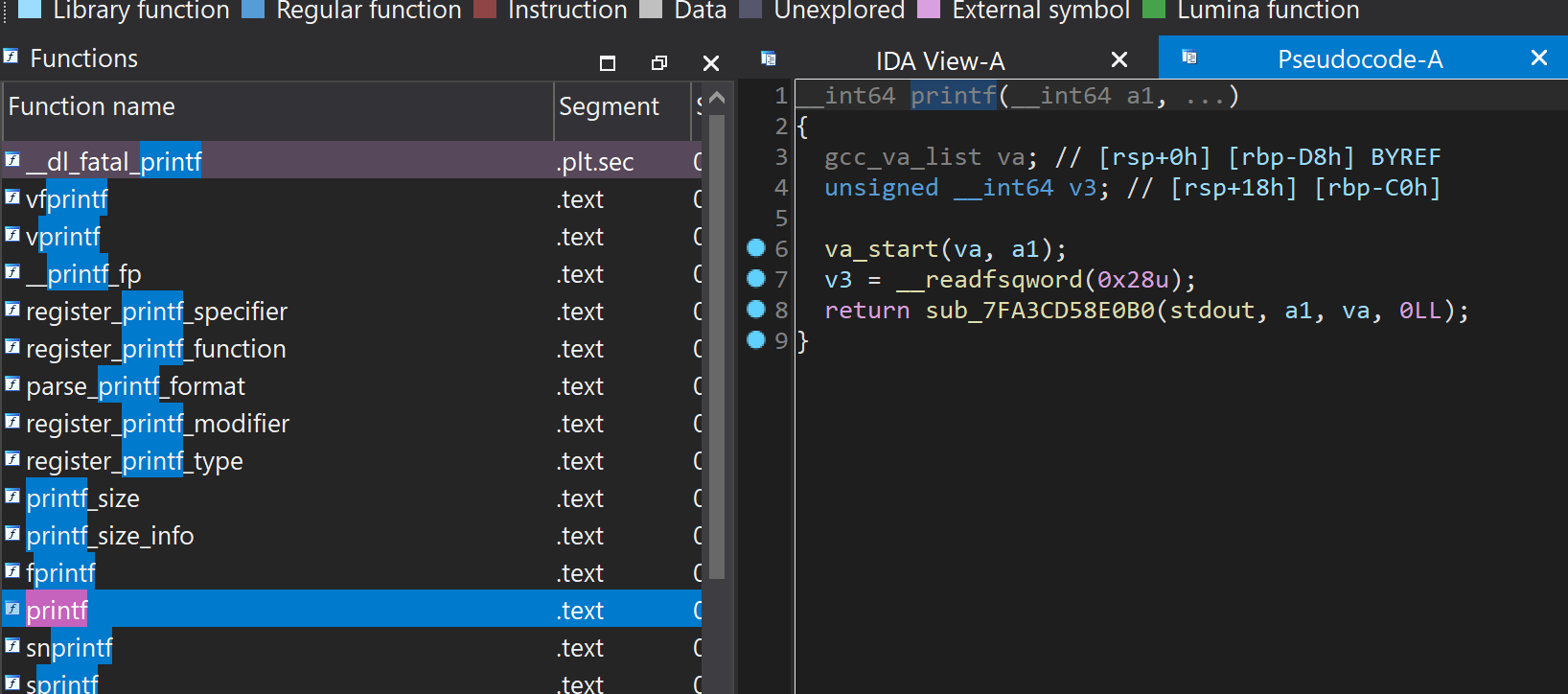

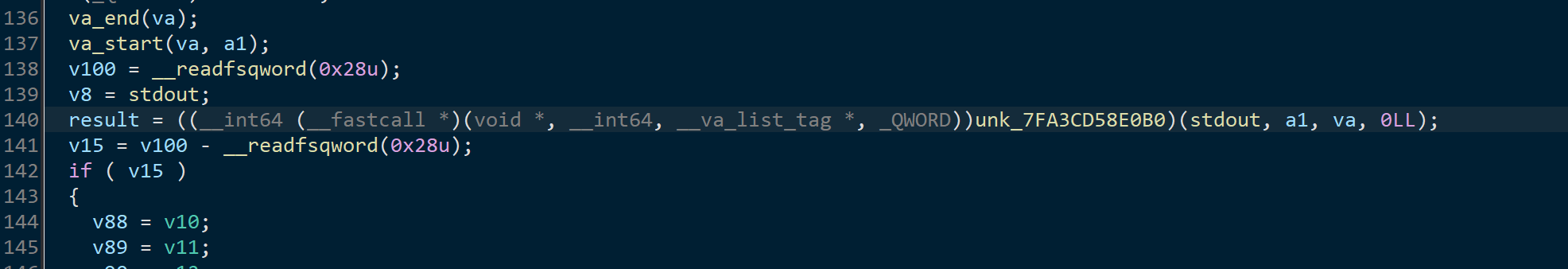

断点进入 printf ，还真是修改了 printf （可能因为改的太少了 bindiff 没识别出来）

Article Image

找找函数调用

View → Open subviews → Function calls

没找出来

还有办法，“暂停”大法，栈中找调用，断在了这里：

Article Image

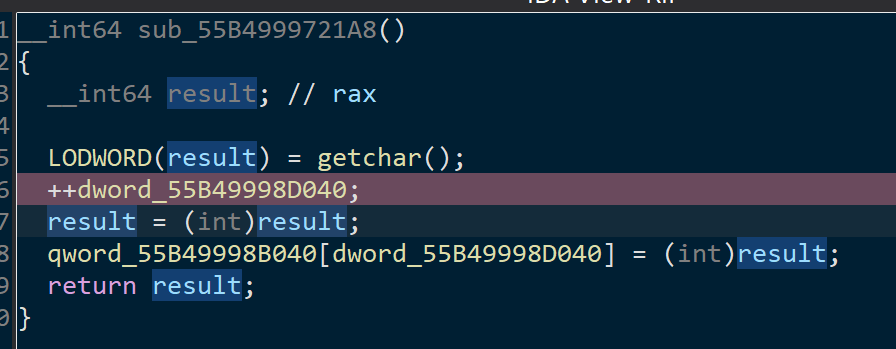

Article Image

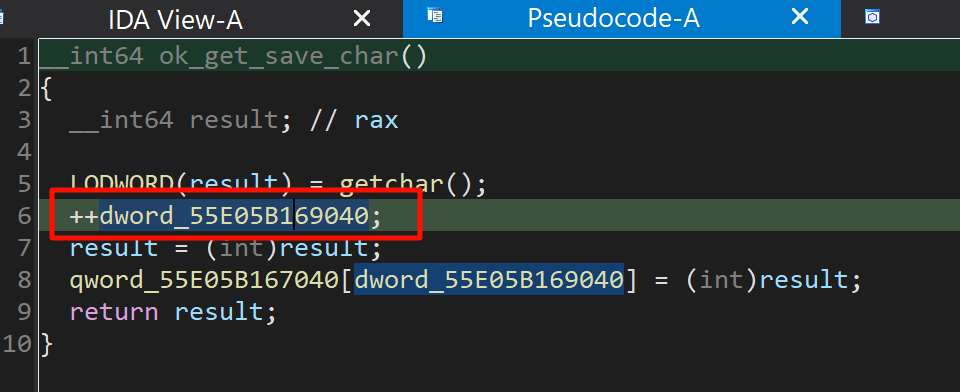

通过给这个下硬件断点，发现这个东西只会用作下标

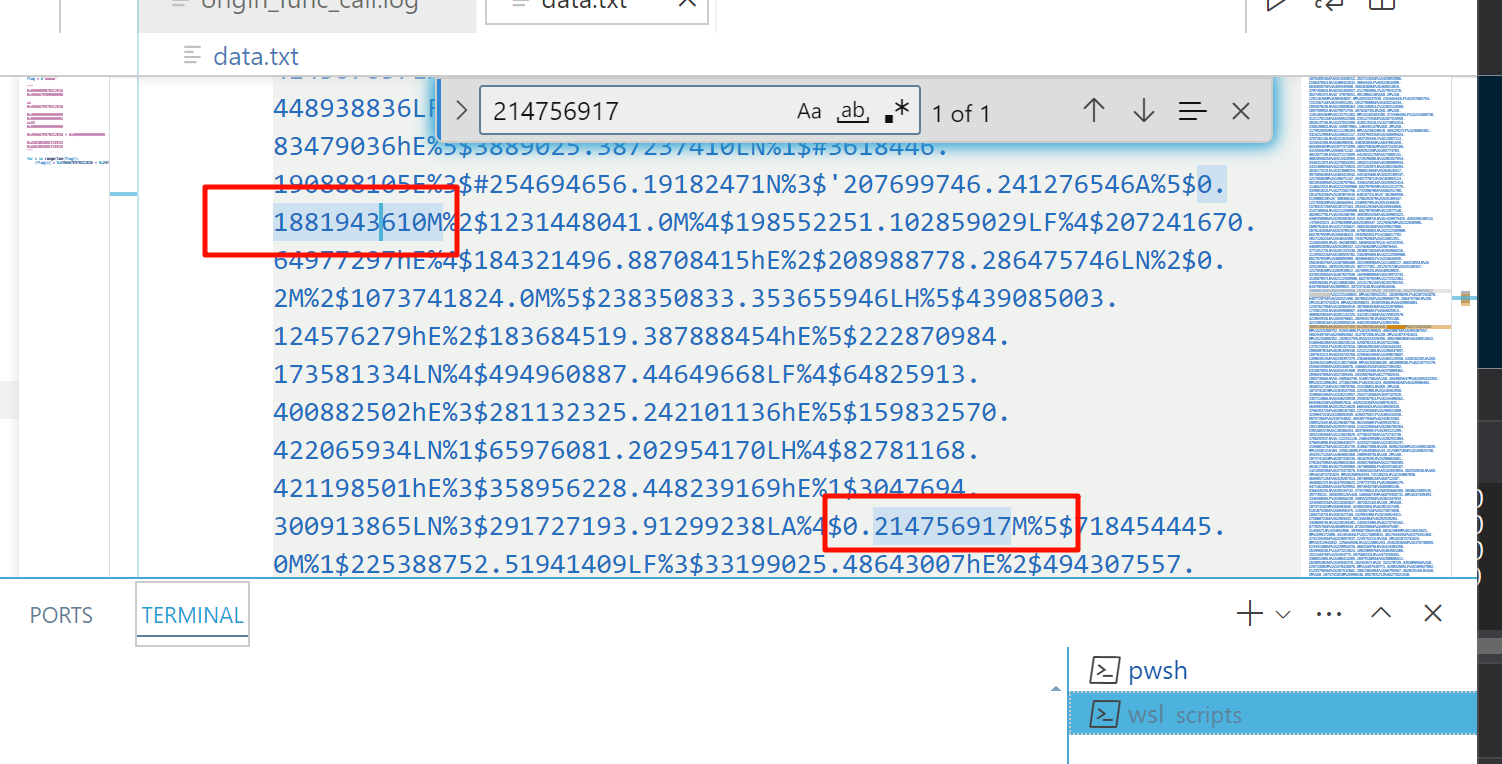

大概看出来 printf 程序是个 vm，对 flag 加加减减的操作都在里面执行，所有系数都能在 data.txt 里找到

%2$ 指的是printf中第二个参数

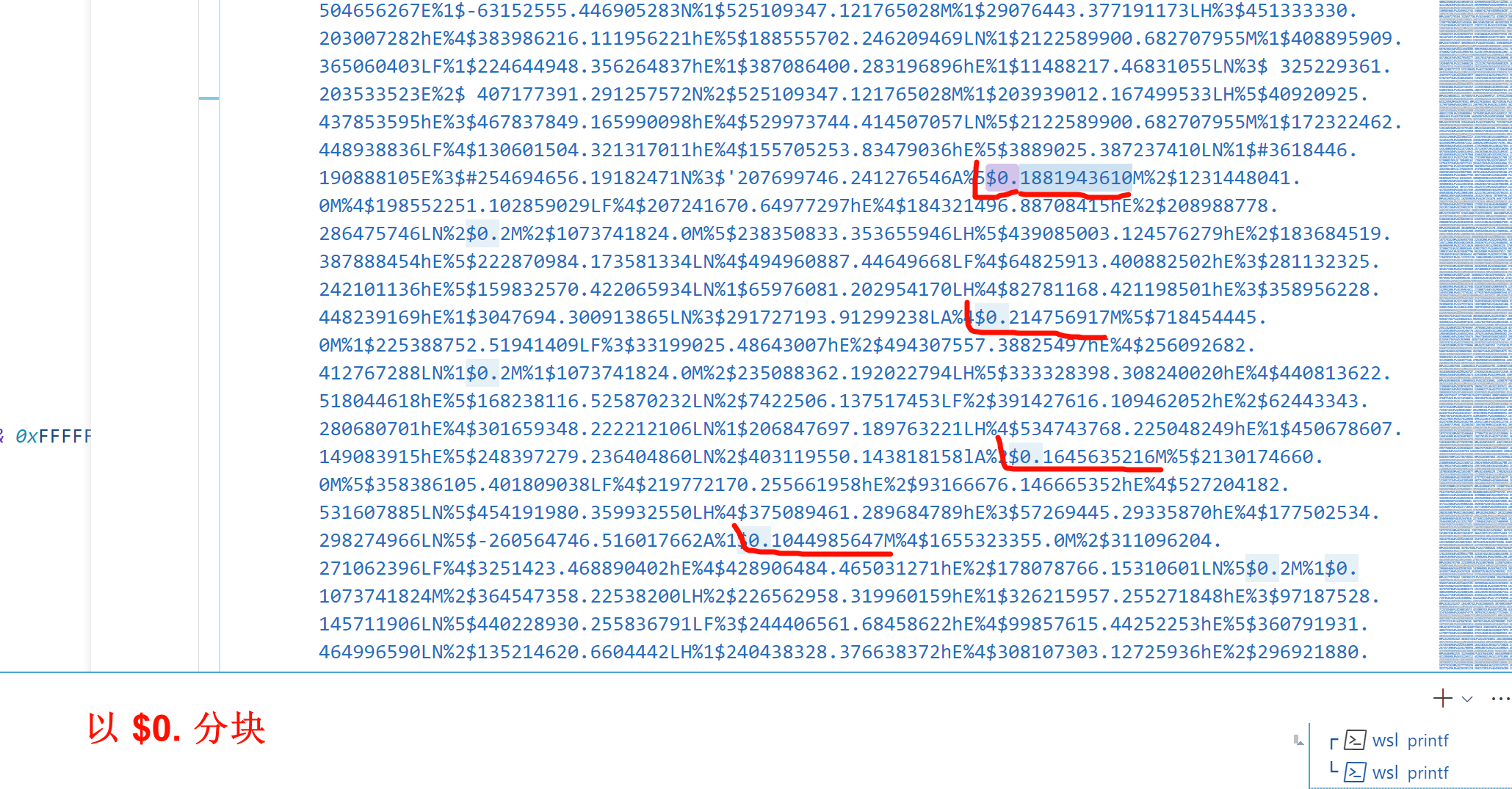

Article Image
Article Image

经测试，4 个字符（节）为一个加密单位，如果不对，就不会继续读取了

直接 ida 写 hook 脚本，断点 + 打印寄存器，直接看日志得出算法（chatgpt真好使，不用翻idapython史书文档真舒服）

就是加加减减，6个参数决定一个4字符块

import idaapi
import idc
import ida_dbg

# 设置断点地址（请根据你的具体情况修改）
# breakpoint_address = 0x401000
output = open("D:/Documents/SZPOJP/Reverse/Shuati/2024-07-20/2024ImaginaryCTF/printf/idadeb_hook.txt", "w")
okprint = lambda x: print(x, file=output)
# 记得最后关闭文件 output.close()
# 定义断点事件处理器
class MyDbgHook(idaapi.DBG_Hooks):
    def __init__(self):
        idaapi.DBG_Hooks.__init__(self)

    def dbg_bpt(self, tid, ea):
        # print("Breakpoint hit at address: 0x{:X}".format(ea))
        # 处理断点事件，如打印当前函数名
        func = idaapi.get_func(ea)
        if func:
            func_name = idaapi.get_func_name(func.start_ea)
            match func_name:
                case 'ok_get_save_char':
                    okprint(f"get_char: {chr(idc.get_reg_value('RAX'))}")
                    print(f"get_char: {chr(idc.get_reg_value('RAX'))}")
                case 'ok_push_num':
                    okprint(f"push_num: {idc.get_reg_value('RAX')}")
                case 'ok_push_reg':
                    okprint(f"push_reg: {idc.get_reg_value('RAX')}")
                case 'ok_pop_reg':
                    okprint(f"pop_reg: {idc.get_reg_value('RAX')}")
                case 'ok_add':
                    okprint(f"{idc.get_reg_value('RAX')} + {idc.get_reg_value('RCX')} = {(idc.get_reg_value('RAX') + idc.get_reg_value('RCX')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_sub':
                    okprint(f"{idc.get_reg_value('RAX')} - {idc.get_reg_value('RDX')} = {(idc.get_reg_value('RAX') - idc.get_reg_value('RDX')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_mul':
                    okprint(f"{idc.get_reg_value('RAX')} * {idc.get_reg_value('RDX')} = {(idc.get_reg_value('RAX') * idc.get_reg_value('RDX')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_div':
                    okprint(f"{idc.get_reg_value('RAX')} / {idc.get_reg_value('RSI')} = {(idc.get_reg_value('RAX') // idc.get_reg_value('RSI')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_mod':
                    okprint(f"{idc.get_reg_value('RAX')} % {idc.get_reg_value('RCX')} = {(idc.get_reg_value('RAX') % idc.get_reg_value('RCX')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_xor':
                    okprint(f"{idc.get_reg_value('RAX')} ^ {idc.get_reg_value('RCX')} = {(idc.get_reg_value('RAX') ^ idc.get_reg_value('RCX')) & 0xFFFFFFFFFFFFFFFF}")
                case _:
                    pass

            ida_dbg.continue_process()
            # print("Breakpoint in function: {}".format(func_name))
        return 0

# 设置断点
# idc.add_bpt(breakpoint_address)

# 注册断点事件处理器
dbg_hook = MyDbgHook()
dbg_hook.hook()

# 提示用户调试器已准备好
print("Debugger hook set. You can now run the debugger.")

z3 尝试求解前四位

from z3 import *

flag = [BitVec('flag_%d' % i, 32) for i in range(4)]

s = Solver()

[
    s.add(flag[i] > 0x20, flag[i] < 0x7e) for i in range(4)
]

calcs = [
    flag[0] * 14512401101554986554,
    flag[1] * 12309110382010363445,
    flag[2] * 9149030501113554576,
    flag[3] * 7109559677222467375
]

s.add(sum([calc & 0xFFFFFFFFFFFFFFFF for calc in calcs]) ^ 6110534783014685135 == 15450279358332388236)

if s.check() == sat:
    model = s.model()
    print(''.join([chr(model[flag[i]].as_long()) for i in range(4)]))

else:
    print('unsat')

成功。改进idapython脚本，找到对应的数

import idaapi
import idc
import ida_dbg

##########################
tmp_char = 0
results = []
##########################

okprint = lambda x: 0
# 定义断点事件处理器
class MyDbgHook(idaapi.DBG_Hooks):
    def __init__(self):
        idaapi.DBG_Hooks.__init__(self)

    def dbg_bpt(self, tid, ea):
        global results, tmp_char
        # print("Breakpoint hit at address: 0x{:X}".format(ea))
        # 处理断点事件，如打印当前函数名
        func = idaapi.get_func(ea)
        if func:
            func_name = idaapi.get_func_name(func.start_ea)
            match func_name:
                case 'ok_get_save_char':
                    okprint(f"get_char: {chr(idc.get_reg_value('RAX'))}")
                    print(f"get_char: {chr(idc.get_reg_value('RAX'))}")
                    tmp_char = idc.get_reg_value('RAX') # 存储当前字符，后续用于获取大数
                case 'ok_push_num':
                    okprint(f"push_num: {idc.get_reg_value('RAX')}")
                case 'ok_push_reg':
                    okprint(f"push_reg: {idc.get_reg_value('RAX')}")
                case 'ok_pop_reg':
                    okprint(f"pop_reg: {idc.get_reg_value('RAX')}")
                case 'ok_add':
                    okprint(f"{idc.get_reg_value('RAX')} + {idc.get_reg_value('RCX')} = {(idc.get_reg_value('RAX') + idc.get_reg_value('RCX')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_sub':
                    okprint(f"{idc.get_reg_value('RAX')} - {idc.get_reg_value('RDX')} = {(idc.get_reg_value('RAX') - idc.get_reg_value('RDX')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_mul':
                    okprint(f"{idc.get_reg_value('RAX')} * {idc.get_reg_value('RDX')} = {(idc.get_reg_value('RAX') * idc.get_reg_value('RDX')) & 0xFFFFFFFFFFFFFFFF}")
                    if tmp_char == idc.get_reg_value('RAX'):
                        results.append(idc.get_reg_value('RDX'))

                case 'ok_div':
                    okprint(f"{idc.get_reg_value('RAX')} / {idc.get_reg_value('RSI')} = {(idc.get_reg_value('RAX') // idc.get_reg_value('RSI')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_mod':
                    okprint(f"{idc.get_reg_value('RAX')} % {idc.get_reg_value('RCX')} = {(idc.get_reg_value('RAX') % idc.get_reg_value('RCX')) & 0xFFFFFFFFFFFFFFFF}")
                case 'ok_xor':
                    okprint(f"{idc.get_reg_value('RAX')} ^ {idc.get_reg_value('RCX')} = {(idc.get_reg_value('RAX') ^ idc.get_reg_value('RCX')) & 0xFFFFFFFFFFFFFFFF}")
                    results.append(idc.get_reg_value('RCX'))
                    if (len(results) == 6):
                        results.append(results)
                        results = []
                case _:
                    pass

            ida_dbg.continue_process()
            # print("Breakpoint in function: {}".format(func_name))
        return 0

# 设置断点
# idc.add_bpt(breakpoint_address)

# 注册断点事件处理器
dbg_hook = MyDbgHook()
dbg_hook.hook()

# 提示用户调试器已准备好
print("Debugger hook set. You can now run the debugger.")

每成功dump出6个数，就扔进z3解出来对应的4个字符，加上之后再加任意四个字符，再debug，用 result[-6:] 拿到新的6个数，以此类推，得出脚本

from z3 import *
dumps = [0xc96667e9702c2e3a, 0xaad2bead0cccee35, 0x7ef7e2c462166690, 0x62aa3adbbe49372f, 0x54ccfb02994249cf, 0xd66a6b37a1f3c38c]
dumps = [0x342e70ab89920dd9, 0x8694cfce23dc0df1, 0x5e14dede8db175aa, 0x488ede6e062613be, 0x9d29cb475e41cb8f, 0x8b6d914ccfe3e4cc]
dumps = [0x3b37278be935996a, 0x5ae8a03882f8a044, 0x656c5d76772fa64c, 0x469fd7c2f2d02294, 0xdd11c039fe5f588f, 0x36296d6ff73c1725]
dumps = [0xe6e4f9dd08b7d237, 0x683b5ae9a60b299e, 0xce7e52def829b2f, 0x60e53b578e7a8fb0, 0x9de3f8582e267573, 0xc74eea217c1780cf]
dumps = [0x81fad7adeffcbe62, 0x50227d45d028e2a7, 0x865d727a1c643594, 0x67e9e9f9ccbb1752, 0x54ccfb02994249cf, 0xb37269bc0cf143c3]
dumps = [0x8fb581c1d37fb102, 0xa3b67ebd7581d178, 0x2e5b50ca6a2ca301, 0xd9dd813ddff69e50, 0x54ccfb02994249cf, 0xf2a053d9454e1199]
dumps = [0xe3cf5a5a34477b7f, 0x17a99ead1dda85d5, 0x11c933f01965c94a, 0xdbe796533b2c5073, 0x9715552a8c24bd9f, 0xf6b85b6bab132df0]
dumps = [0x48d8b5385ca9de5e, 0x74c57cbf4dc60c5c, 0x473ffdd19d8d3e68, 0x7d1b9e50cab6cf, 0x54ccfb02994249cf, 0xb7fa65c680cb955c]
dumps = [0x4ad903a7737bf6d, 0xfe24ae2919fb080a, 0x91fee69eb0426269, 0xa311c78ac6eed0e3, 0x9715552a8c24bd9f, 0x5af0e6ba579b8c16]
dumps = [0x172a2cfcc154e672, 0xba5e6196c6d0dbaa, 0x76c5558dd76520b6, 0x7edae72078618adc, 0x9de3f8582e267573, 0x8e39f4391d389a5d]
dumps = [0x75982e11c6e9f787, 0xded3a49eaab0bbca, 0xfe3652659fa79527, 0x6b8d71916d0dc21, 0x54ccfb02994249cf, 0x4c4a722b516d0dc2]
dumps = [0xf6816364e882e5d0, 0xd3de330e05e340bf, 0xf3009bcf092a1bf3, 0xb98fd6eaeaa31de4, 0x9715552a8c24bd9f, 0xbd1b348cb14b1a0c]
dumps = [0x3cbb28b00d982646, 0xc01e2683ea8c4f04, 0xb0728f6694068514, 0x4a3cf42d4f74f903, 0xdd11c039fe5f588f, 0xca37dfc59b0d445c]
dumps = [0xcb8bcc57d18df0a7, 0x9bc154f177dba69b, 0x1ce10b01008fe0b8, 0x393ca8f9f07754f1, 0x9d29cb475e41cb8f, 0x3ea20b9736418168]
dumps = [0xa0e1d7496e8f3692, 0x792055bbe67c455e, 0x23c9f1c9f9352918, 0xee71cc15ec4af890, 0xdd11c039fe5f588f, 0x13654f2ad9a2debf]
dumps = [0xc16f11ba163fe9a6, 0xf7cceee60cad4500, 0xe296a079970a4d01, 0xe06519e67ff54956, 0xdd11c039fe5f588f, 0x38595695629e5e96]
dumps = [0x5cc42aea4fad516b, 0x654b96d840b731b3, 0x238c34b915584ceb, 0xd9401f52df46b0fb, 0x9d29cb475e41cb8f, 0x1c1c82f150f07462]
dumps = [0xf9923bc7ae594205, 0x97b9f4f4c11b13ee, 0x2452efbf17fce49, 0x7b75687e9288270a, 0x54ccfb02994249cf, 0xcfae6899f240f30a]
flag = [BitVec('flag_%d' % i, 32) for i in range(4)]

s = Solver()

[s.add(flag[i] > 0x20, flag[i] < 0x7e) for i in range(4)
]

calcs = [
    flag[0] * dumps[0],
    flag[1] * dumps[1],
    flag[2] * dumps[2],
    flag[3] * dumps[3]
]

s.add(sum([calc & 0xFFFFFFFFFFFFFFFF for calc in calcs]) ^ dumps[4] == dumps[5])

if s.check() == sat:
    model = s.model()
    print(''.join([chr(model[flag[i]].as_long()) for i in range(4)]))

else:
    print('unsat')



Watch dog#

watchdog

The keepers of the Watchdog vault have forgotten their password. Can you help them retrieve it?

长度 43

Article Image

flagToNum：

flag = list(b"aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa")

加密算法：

flag = list(b"aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa")

def my_pow(i: int, j: int) -> int:
    if j == 0:
        return 1
    if j == 1:
        return i
    if j & 1:
        return i * my_pow(i * i, (j - 1) >> 1)
    return my_pow(i * i, j >> 1)

result = []
# evalMultiPoly
for i in range(2, len(flag) + 3):
    tmp = flag.copy()

    # evalVectPoly
    tmp_result = 0
    for k in range(0, len(tmp), 1):
        tmp_result += tmp[k] * my_pow(i, len(tmp) - 1 - k)

    result.append(tmp_result & 0xFFFFFFFFFFFFFFFF)

print([hex(c) for c in result])

看算法像是要解 43 元一次方程组，但是 z3 解不出来，使用 sage 试试

Sage Cell Server (sagemath.org)



Absolute Flag Checker#

What's easier way than verifying flag contents more times than required?

absolute flag checker.exe

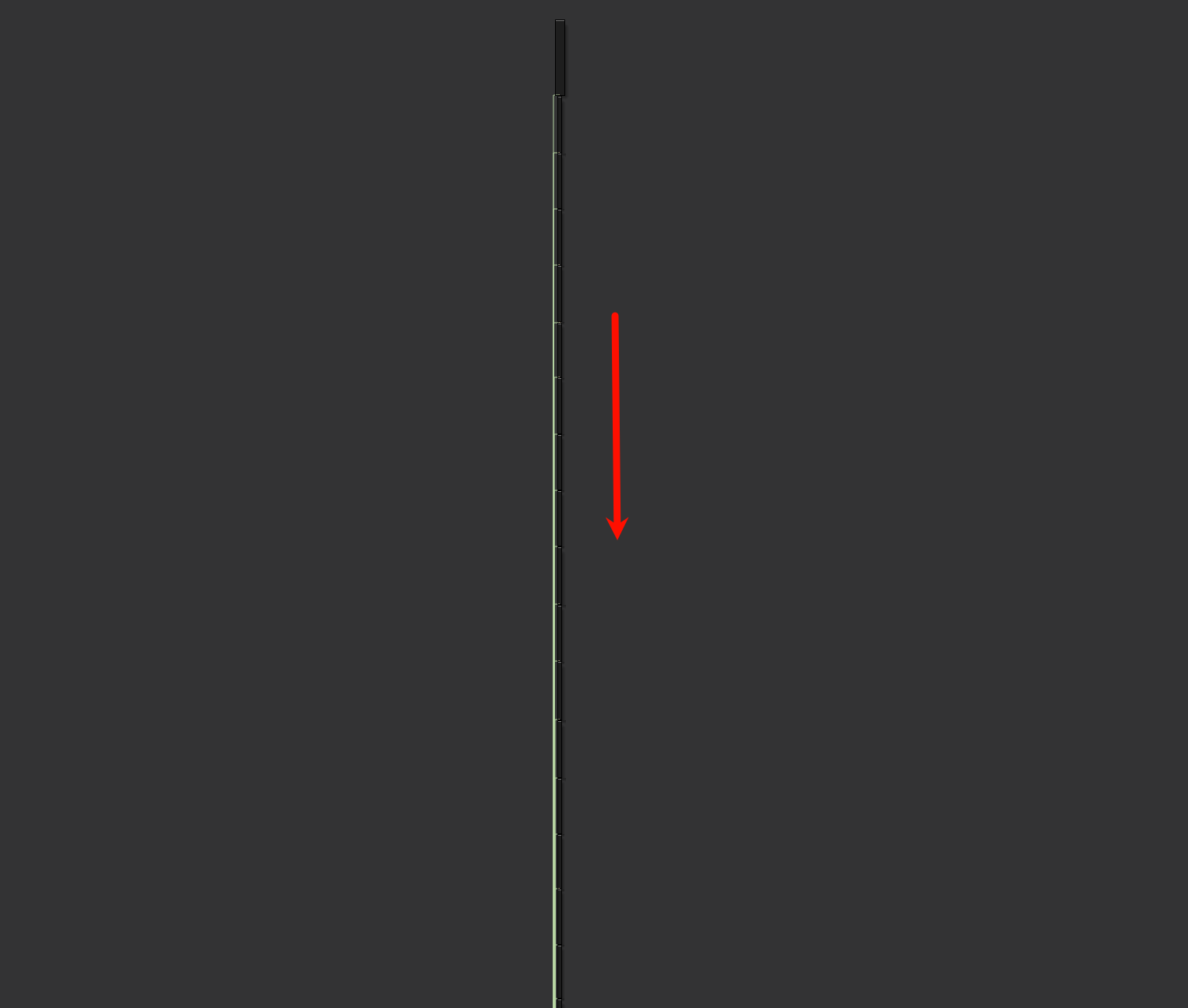

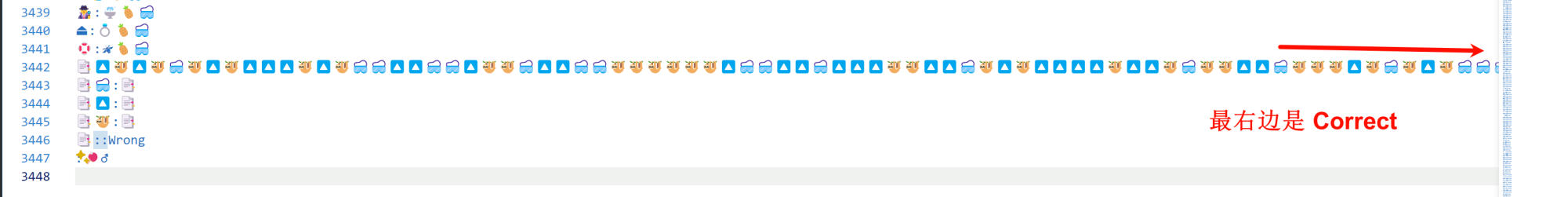

Article Image

检查方式比较简单，只要能一条路走到底，就成功了

又是解方程，我嘞个去

每一个小方块是一个方程，47 个未知数 0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJK

我嘞个去，长度不一定是 47，超过 字符串长度的默认为 0

试出来的经验：如果能解方程解出来，就不要加限制，如 [And(0x20 < f, f < 0x7E) for f in flag] ，会极大降低 z3/sage 效率



Minecraft#

pip install pynbt
pip install anvil-parser

How can read Minecraft .mca files so that in python I can extract individual blocks? - Stack Overflow

用 Minecraft 1.21 打开，一行命令完成

/execute as @e[type=wolf,nbt={CollarColor:11b,variant:"minecraft:black"}] at @s run say I found a blue-collared dog!

NBT Tags for Wolf in Minecraft (Java Edition 1.16/1.17/1.18/1.19/1.20) (digminecraft.com)



VM#

check_flag.vokram vm.py

Can you find what this (very inefficient) VM is doing?

Article Image
In [11]: [i for i in range(len(program)) if program[i][2] == True]
Out[11]: [3441, 3445]
